Product Overview
This patented 2‑Pin Solenoid Valve Plug is an upgraded industrial valve connector integrated with a real‑time voltage‑display module. Suitable for a wide range of industrial solenoid‑valve control systems, this IP67‑rated waterproof connector delivers on‑site voltage monitoring without extra testing tools. It helps detect voltage anomalies quickly, cuts troubleshooting time and lowers maintenance costs. Manufactured to EN175301‑803 international standards, it is a reliable connection solution for industrial automation, hydraulic and pneumatic machinery.
Key Features

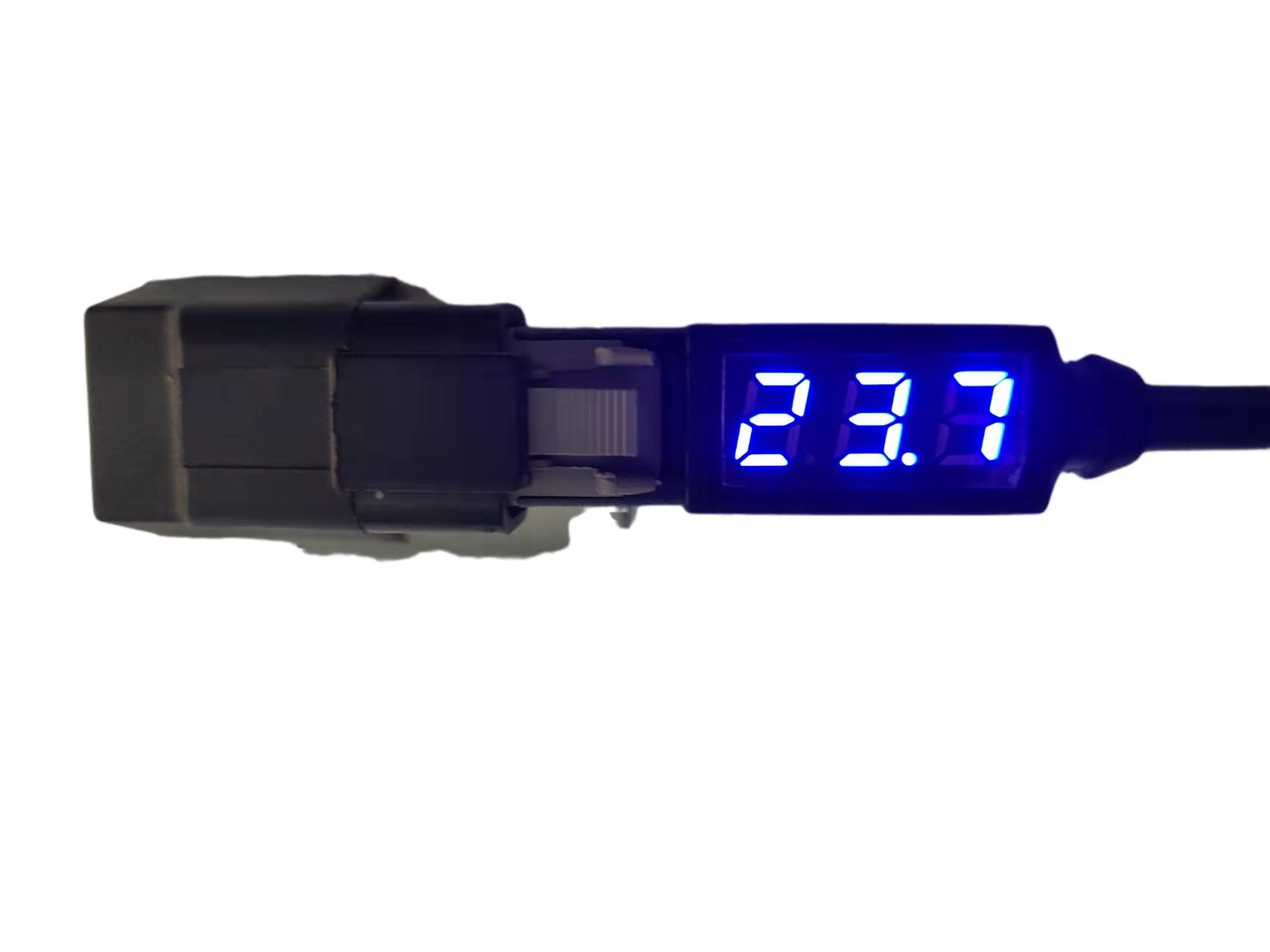

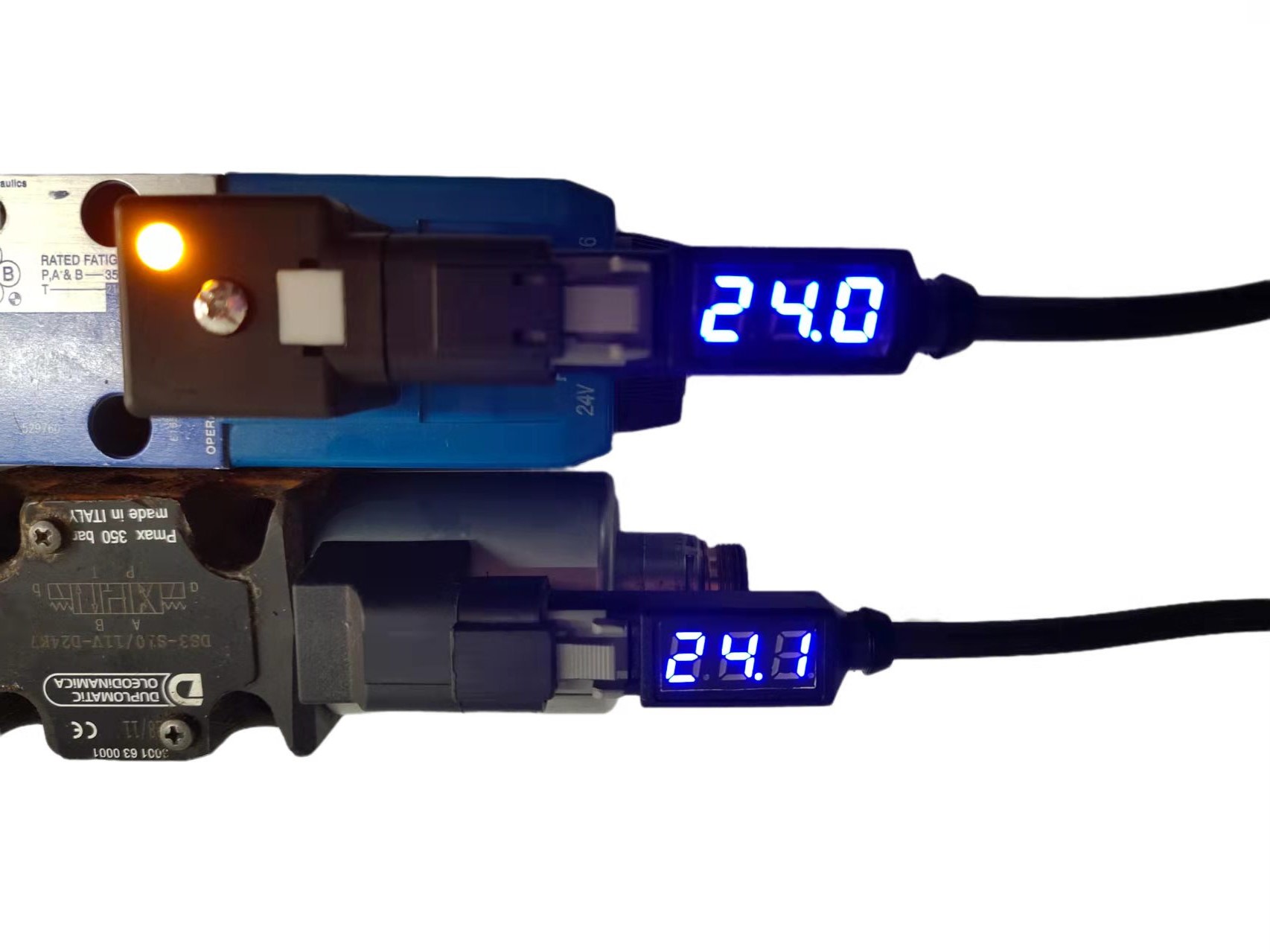

✅ Real‑Time Voltage MonitoringBuilt‑in high‑precision voltage detection module displays working voltage directly on the 2‑pin solenoid valve connector. No additional measuring tools required, allowing operators to check voltage status on‑site conveniently.
✅ IP67 Waterproof & Dust‑ResistantHigh‑grade sealing structure achieves IP67 protection, stable performance in humid, dusty and harsh industrial environments for long‑term service life.
✅ Improved Operational SafetyReal‑time voltage readout detects over‑voltage and under‑voltage in time, preventing solenoid‑valve damage caused by unstable power supply and reducing hidden safety risks.
✅ Fast Fault DiagnosisWhen the solenoid valve fails, technicians can identify voltage‑related faults quickly from the displayed value, greatly shortening downtime and maintenance work.
✅ Compact & Easy‑to‑InstallVoltage‑display unit is fully integrated inside the plug body. Compact design does not occupy extra space or interfere with normal installation and wiring of the solenoid valve.
✅ Cost‑Effective SolutionEliminates the need for separate voltage‑testing instruments, reduces inspection labor and long‑term maintenance costs for industrial equipment.
✅ Meets International Industrial StandardFully compliant with EN175301‑803 specification, ensuring stable electrical performance and universal compatibility with standard solenoid valves.
Product Specifications
| Item | Specification |
|---|
| Product Name | 2‑Pin Solenoid Valve Plug with Real‑Time Voltage Display |
| Model No. | TT06‑2S (Voltage Display Version) |
| Material Code | TM2022006 |
| Working Voltage | 3‑99V DC/AC Wide Voltage |
| Rated Current | 4A |
| Protection Grade | IP67 (Dustproof & Waterproof) |
| Standard | EN175301‑803 |
| Cable | PVC 2×0.75mm² (AWG18); PUR cable optional |
| Working Temperature (Fixed) | ‑40℃ ~ 80℃ |
| Working Temperature (Movable) | ‑5℃ ~ 80℃ |
Application Scenarios

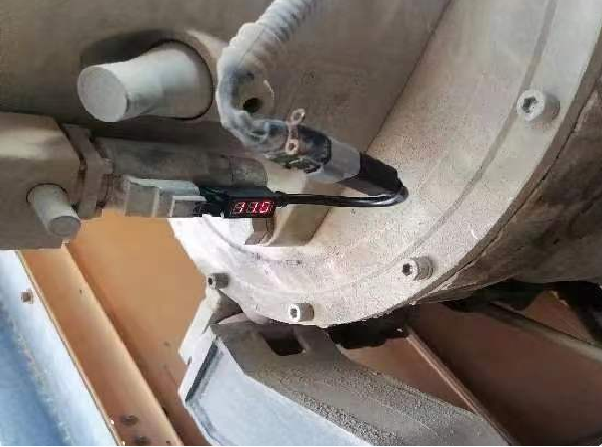

Widely applicable to industrial automation equipment, hydraulic and pneumatic control systems, mechanical engineering equipment, automated production lines, and various DC/AC solenoid valve matching scenarios. Ideal for indoor and outdoor industrial environments requiring real-time circuit monitoring, high safety and stable waterproof connection.

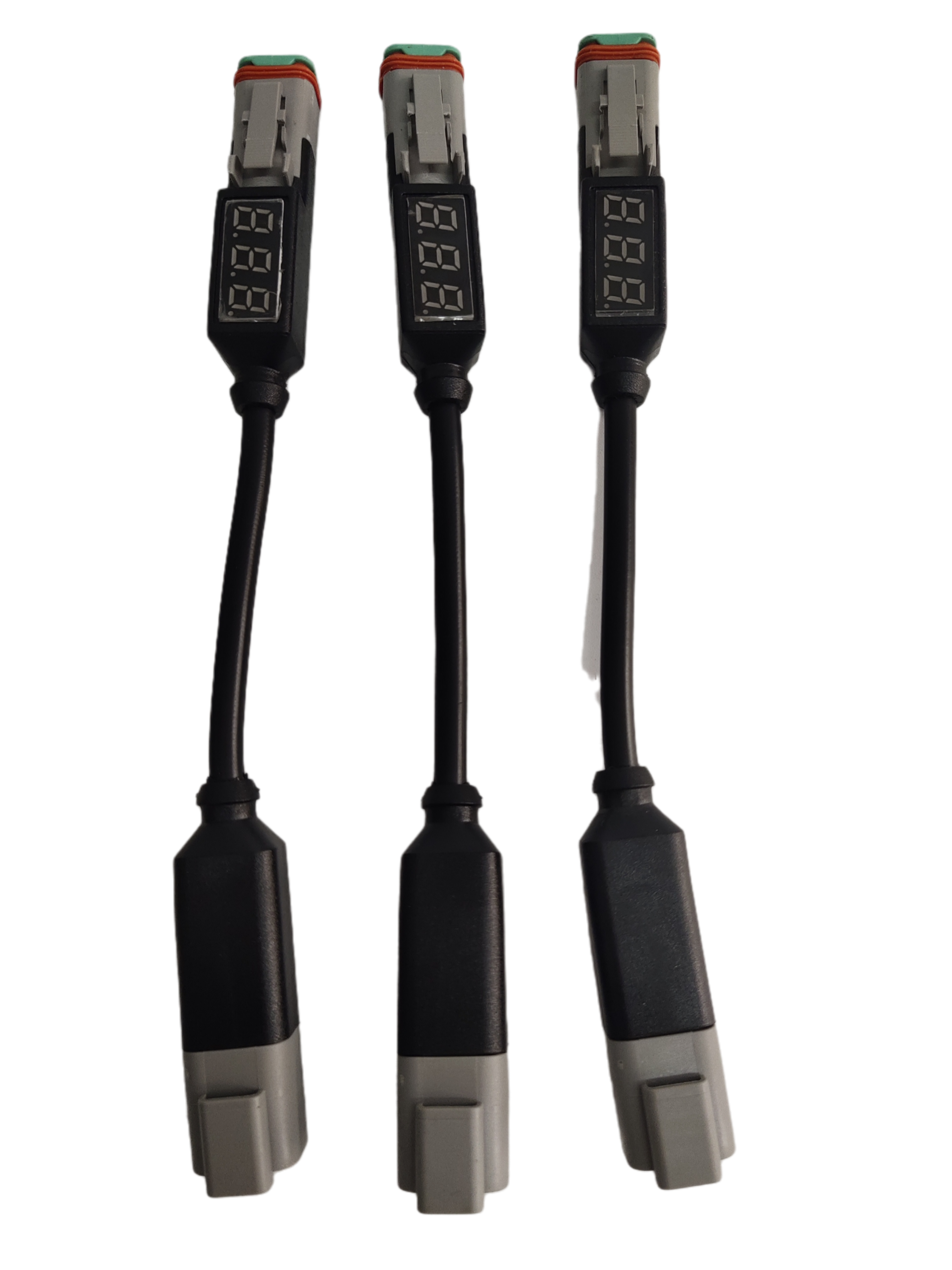

Optional Cable Length Options
